What Is a Thermostatic Radiator Valve?

As an Amazon Associate I earn from qualifying purchases.

A thermostatic radiator valve, almost always shortened to TRV, is a self-regulating valve that sits on one end of a radiator and shuts the hot water off once the room around it reaches the temperature you have dialled in. It senses the air in the room, not the heat in the radiator, and it works on its own without any wiring, batteries or connection to the boiler.

That is the short answer, and it is where most pages on this subject stop. The useful part comes next, because a TRV is one of those components that almost everybody owns and almost nobody uses properly. Three things go wrong again and again: people read the numbers on the dial as a power setting, people fit one in the room that holds the room thermostat, and people assume a cold radiator means a broken valve when it usually means a stuck pin that takes two minutes to free.

I ran plumbers merchants across the south of England for sixteen years. TRVs were one of the highest-volume lines on the counter and also one of the highest sources of returns, and the pattern in those returns was remarkably consistent. This page covers what the numbers mean, where the valve must not go, which faults are worth fixing, and whether the smart versions are worth the money once you do the arithmetic at the current gas price.

How a thermostatic radiator valve works

There are two parts. The valve body is the brass fitting plumbed into the pipework, and it contains a spring-loaded pin. The head is the plastic dial that screws onto the body, and inside it sits a sealed capsule filled with wax, liquid or gas.

When the air around the head warms up, the contents of that capsule expand. The capsule presses down on the pin, the pin pushes the valve closed, and the flow of hot water into the radiator slows and then stops. When the room cools, the capsule contracts, the spring pushes the pin back up, and the water flows again. There is no electronics and no power supply. It is a thermometer that happens to be able to turn a tap.

Two consequences follow from that, and both matter more than the mechanism itself.

• A TRV measures the air, not the radiator. Box it in behind a sofa, hide it under a long curtain or sit a radiator cover over it and it will read the warm pocket of air trapped around itself rather than the room, shut early, and leave the room cold.
• A TRV cannot make a radiator hotter than the boiler is sending. It can only restrict. If the radiator is lukewarm on setting 5, the problem is the flow temperature, the pump, the balancing or sludge, not the valve.

Liquid and gas-filled capsules react faster than wax ones, which is the whole argument for spending more than the bottom of the range. Wax lags, so the room overshoots before the valve reacts and undershoots before it opens again. Over a heating season that swing is what people describe as a room that is never quite right.

What the numbers on a TRV actually mean

This is the single most misunderstood thing about TRVs, and the retailers are not going to explain it because there is no sale in it.

The numbers are not temperatures in degrees, they are not a power setting, and they are not a measure of how open the valve is. They are target room temperatures on a rough scale. Setting 3 does not mean the radiator runs at 30 per cent. It means the valve will keep feeding the radiator until the air around the head reaches roughly 20°C, and then it will close.

Which means turning every valve to 5 does not heat the house faster. It heats the house to the same speed and then keeps going past the point you wanted, because you have told the valve not to stop until the room hits 28°C.

Why turning a TRV to 0 is not the same as turning the radiator off

Setting 0 closes the valve, but it does not isolate it. There is still water in the radiator and the valve can still pass a trickle as it ages. If you want a radiator genuinely off, for redecorating or because a room is out of use, there is a proper way to do it, and our guide on how to turn off a radiator covers the lockshield end as well as the TRV end.

Leaving a TRV on 0 all summer is also how you create next autumn's stuck pin. The pin sits in the same position for five months, the gland picks up a little scale, and the first cold day it will not move. Turning every TRV fully open for a week in late summer is the cheapest maintenance job in the house.

Where a TRV must not go

The room with the room thermostat

This is the error people make most often, and it is the one with the worst consequences. The radiator in whichever room holds your room thermostat should be on two ordinary valves, a wheelhead and a lockshield, with no TRV anywhere on it.

The reason is a fight between two controls that are both trying to manage the same room.

Industry guidance on complying with Part L of the Building Regulations, published by Drayton, puts it as good practice to fit TRVs to all radiators in rooms without a room thermostat. Read that the way the trade reads it: the thermostat room is the exception, and it is deliberate.

If you have already fitted one there and you do not want to change the valve back, the workable compromise is to wind that TRV fully open and leave it alone, so it never closes before the wall thermostat has had its say. It is a bodge, but it stops the short cycling.

The bathroom

The traditional answer is that bathrooms do not get TRVs, and the reasoning is worth spelling out rather than just asserting, because it is not an absolute rule.

A bathroom spends most of the day cool and then, for twenty minutes, becomes the hottest and wettest room in the house. A TRV senses that steam heat and shuts the radiator or towel rail down at exactly the moment you want it running, because a warm rail is what dries the room out afterwards. Then the steam clears, the room drops, the valve opens, and the rail comes back on when nobody is in there.

There is a second reason on some systems. Where a boiler needs a permanent path for water to circulate, that duty is often given to the bathroom towel rail because it is the one emitter that can be left open all year without anyone complaining. Fitting a TRV to it removes the bypass, and the boiler starts to complain about it instead.

If you do want control of a bathroom rail, the sensible route is a remote-sensor TRV head, where the capsule sits on a capillary away from the steam, or a manual valve that you simply turn down.

Anywhere the head cannot feel the room

Behind a sofa, inside a radiator cover, under a full-length curtain, tucked into an alcove with no air movement, or directly under a window with a draught blowing over it. In the first four cases the head reads warmer than the room and shuts too soon. In the last it reads colder and never shuts at all. The remote-sensor heads exist precisely for these situations and cost a few pounds more than a standard one.

Which side of the radiator does a TRV go on?

This is the question that comes up in the People Also Ask box on every TRV search, and the honest answer has two halves.

It depends on the valve. A bidirectional valve can go on either the flow or the return and will work correctly on both. A directional valve has a flow arrow cast or printed on the body and has to be fitted so the water runs the way the arrow points.

Fit a directional valve backwards and it does not leak and it does not fail to heat. It chatters. Water tries to close the valve against the spring, the valve judders, and the radiator makes a knocking or whistling noise every time the boiler fires. That is the fault that used to come back over the counter as a faulty valve when it was a fitting error, and it is almost always a budget valve, because the cheap ones are the directional ones.

The better-known brands have largely solved this. Drayton state in their own installation literature that the 15mm angle bodies come with a reverse flow feature as standard and can be fitted on the flow or the return. If you are buying blind and you cannot tell which pipe is the flow, buying a bidirectional valve removes the problem entirely and costs very little more.

Two other orientation points are worth knowing. The head can normally be fitted horizontally or vertically, so a valve on a vertical pipe drop still works. And a head pointing straight up, underneath a radiator, tends to sit in the radiator's own rising heat and shut early, which is another version of the same sensing problem.

Manual TRV or smart TRV, and what the saving is actually worth

A smart or app-controlled TRV replaces the plastic head with a battery-powered motorised one that talks to a hub. You get a schedule per room, control from your phone, and in most systems the ability to tell the boiler to fire because one particular room wants heat. That last part is genuinely useful and is the real difference from a manual valve.

The saving is real. Whether it repays the outlay is a different question, and it is one the manufacturers answer with percentages that do not survive contact with a calculator.

The one savings figure that is actually measured

The most solid number in this area comes from the University of Salford Energy House, a full-size Victorian terrace inside an environmental chamber, in tests commissioned by BEAMA and published in September 2018. Across eleven tests at different external temperatures, the study put the average energy saving potential of TRVs at 18 per cent of heating costs.

Read the comparison carefully, because it is routinely quoted as something it is not. That 18 per cent is a house with a room thermostat and no TRVs against the same house with TRVs fitted. It is not smart valves against manual ones. If your radiators already have working TRVs, you have banked most of that saving already, and the smart upgrade is competing for whatever is left.

I have not found an independent UK study that isolates the extra saving of a smart TRV over a working manual one. So rather than invent a percentage, the more useful thing to do is turn the question round and ask how much they would have to save to pay for themselves.

The break-even arithmetic, done at the current gas price

So the honest verdict. Smart TRVs are worth it if you have a house where rooms are genuinely used at different times, a home office that needs heat at 9am when the rest of the house does not, a spare room used twice a month, teenagers who are out all day. That schedule control is what generates the saving, and in that house 6 to 12 per cent is plausible.

They are not worth it in a house where everyone is in the same rooms at the same times and the manual valves are already set sensibly. There you are buying convenience, which is a fine thing to buy, but it is not an investment and nobody should sell it to you as one. If saving money on heating is the actual goal, doing the cheap physical things first is better value: radiator reflector panels, getting the system balanced, and clearing the sludge that is stopping half your radiators reaching full output.

Manual, smart and decorative compared

What a TRV costs, and what fitting one costs

Two separate numbers, and the second is much larger than the first, which is the bit people do not expect.

The Energy Saving Trust put the cost of fitting TRVs to all the radiators in a house at around £370 if you already have a programmer and a room thermostat, and around £600 if you are installing a full set of controls at the same time. On an eight-radiator house that is roughly £290 of labour on top of £80 of valves, which tells you exactly where the money goes.

Is fitting a TRV a DIY job?

Replacing just the head is a five minute DIY job with no water involved. Undo the collar, lift the old head off, push the new one on, tighten. Nothing drains, nothing can go wrong beyond dropping the collar behind the radiator. If your valve is a common pattern, and most UK bodies take an M30 x 1.5 head, this is how you upgrade to smart valves or replace a tired capsule.

Replacing the body is a different job and the cheerful answer you will get elsewhere is not the honest one. The valve body is plumbed into the pipework, so you either drain the system down or use a pipe freezing kit. Neither is difficult in principle. Both are the sort of job that turns into an evening when the tail is seized into the radiator or the compression nut has been on for thirty years.

• Drain down. Slower, safer, and the sensible choice if you are doing several valves at once. You will need to add inhibitor to the fresh water afterwards, and on a sealed system you will need to repressurise the boiler once it is refilled.
• Freeze kit. Faster and keeps the inhibitor in the system, but you get one attempt and a limited window before the plug thaws. If the nut will not move, you are committed.
• Either way, do not take a blowtorch near the valve. The capsule and the internal seals will not survive it, and manufacturers say so in their own instructions.

If you are taking the radiator off the wall anyway, our guides on removing a radiator and bleeding a radiator cover the refill and the air that always comes with it. A TRV fitted to a radiator that is still full of air will read the room correctly and still leave you cold.

The stuck pin, and the rest of what goes wrong

A stuck pin is the commonest TRV fault by a wide margin, and it is not really a fault at all. It is what happens when a valve sits in one position through a warm summer. The pin corrodes very slightly into the gland, and when the head next tries to push it or release it, it does not move.

What it looks like: one radiator stone cold when everything else in the house is hot, and the dial makes no difference at any setting. Occasionally the opposite, one radiator roasting and refusing to turn down.

How to free a stuck TRV pin

1. Turn the head to its highest setting and unscrew the collar. Lift the head straight off. There is no water behind it, the pin is sealed into the body, so nothing will come out.
2. Look at the pin. A free pin sits proud and springs back when you press it. A stuck one sits flush and does not move at all.
3. Tap the top of the pin gently with the handle of a screwdriver, four or five light taps. Surprisingly often that is all it takes, because the bond is thin.
4. If it stays put, grip the very top of the pin with pliers and pull it straight up, then press it down, then up again. Work it up and down a dozen times until it springs back on its own. Grip the top few millimetres only. Scoring the shaft where it passes through the gland is how a working valve becomes a weeping one.
5. Refit the head on its highest setting, so the head is not trying to push a pin that has only just started moving again.

On penetrating oil: plenty of people reach for it and it usually works. It is worth knowing that the gland seal was not designed to sit in solvent, so if the pin frees with taps and pliers, leave the can in the shed. If you do use it, a single drop at the pin rather than a flood over the valve.

Working out which TRV fault you have

Several of these are not valve faults at all, which is the point of the table. Our guide to common radiator problems goes further into the ones that are about the system rather than the valve.

Which thermostatic radiator valves are worth buying

These picks are judged on specification, manufacturer documentation and what sold and came back across a merchant counter, not on hands-on testing. I am not a plumber and I have never held Gas Safe registration, which matters for what I can and cannot tell you.

Two of the four are Drayton, which needs an explanation rather than being left to look like favouritism. Drayton is what the merchants stocked as the default, what fitters asked for by name, and what came back least often. The alternative at that level is Danfoss, which is just as good and harder to buy online as a complete valve.

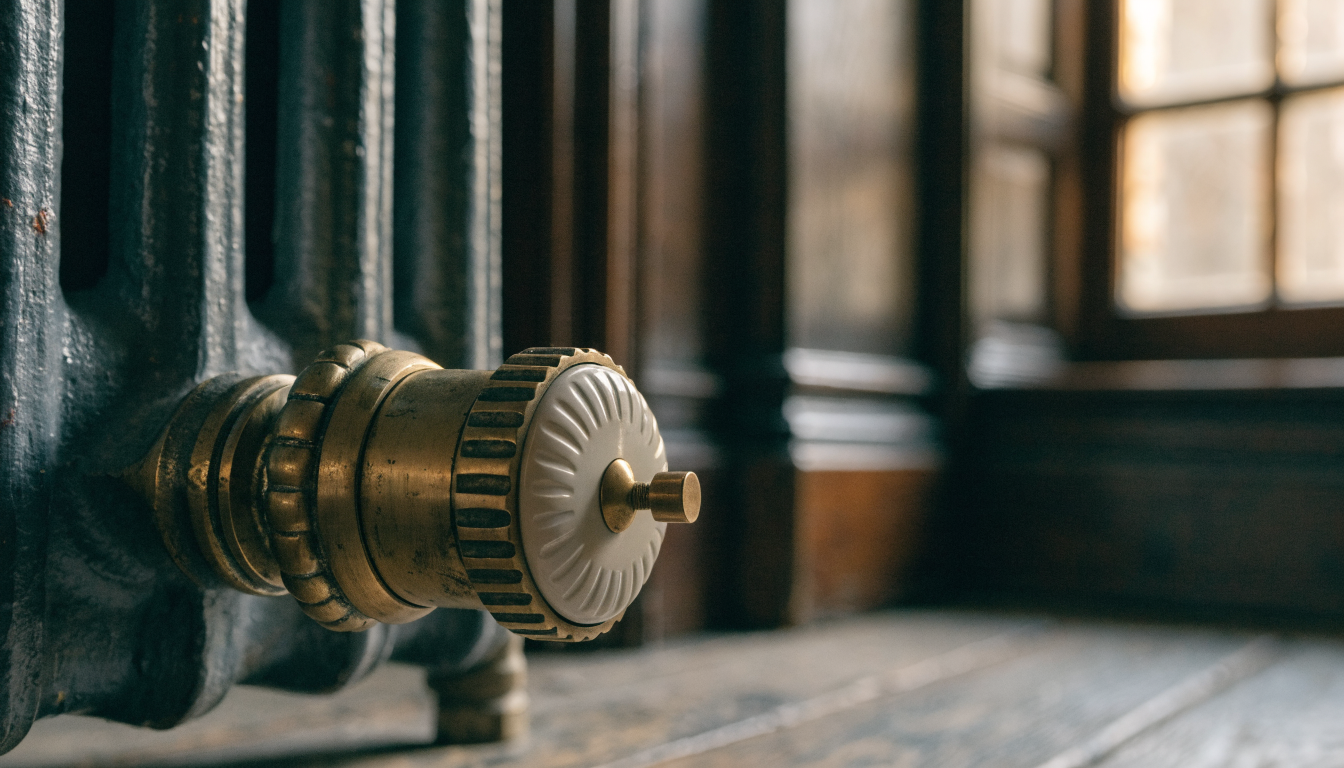

The decorative end of the market is a real purchase driver and it gets dismissed too easily. People who have spent a few hundred pounds on a cast iron or column radiator are not going to accept a white plastic dial bolted to the end of it, and there is no sense pretending otherwise.

Two things are worth knowing before you buy one. First, the mechanism inside is the same capsule as a standard valve, so you are paying for the shell, and a set at £60 will not control better than one at £15. Second, when the head eventually tires you have to replace it with a matching one, and small traditional brands change their ranges. Buy from a range likely to still exist in five years.

Worth mentioning without recommending: the Hive smart TRV is the obvious alternative to the Wiser head if your house already runs on Hive, and at Screwfix it sat at £59.00 on 18 September 2026. There is no point mixing ecosystems. Whichever hub is already on your wall should decide which smart valve you buy, and that decision is made for you before you start reading reviews.

Frequently asked questions about thermostatic radiator valves

What temperature is 3 on a TRV?

On the Danfoss scale, setting 3 targets a room temperature of 20°C. That is the setting most UK living rooms want. The scale is not standardised across manufacturers, though, so treat 3 as a starting point and adjust after a full day rather than assuming the printed number is exact. Drayton, for instance, state that the TRV4 covers roughly 10°C to 27°C across its whole range.

Can I put a TRV on all radiators?

No, and this is the important exception. The radiator in the room that holds your room thermostat should not have one, because the two controls fight each other and make the boiler short cycle. Bathrooms are usually left off too, and on some systems one radiator is deliberately left open as a permanent circulation path. Every other room should have one.

Does it matter which side a TRV goes on a radiator?

It depends entirely on the valve. Bidirectional valves work on either side, and most of the better-known brands are now bidirectional as standard. Directional valves have a flow arrow on the body and must follow it. Fit a directional valve backwards and the symptom is chattering or knocking when the boiler fires, not a leak and not a cold radiator.

Should the TRV be on the flow or the return?

Traditionally the flow, because that is where the valve has the most direct control over what enters the radiator. In practice a bidirectional valve is fine on either, and Drayton confirm their 15mm angle bodies can go on the flow or the return. If you have a directional valve and cannot work out which pipe is which, the flow is the one that gets hot first when the heating starts from cold.

How do you unstick a thermostatic radiator valve?

Take the head off, find the pin in the top of the valve body, and tap it a few times with a screwdriver handle. If that does not free it, grip the top few millimetres with pliers and work it up and down until it springs back on its own. No water comes out when the head is removed. Grip only the very top of the pin, because scoring the shaft will cause a weep later.

What is the problem with thermostatic radiator valves?

Three things, in order of how often they happen. The pin seizes over summer and the radiator stays cold. The head gets fitted somewhere it cannot sense the room, behind furniture or in a radiator cover, so it shuts too early. And people misread the numbered dial as a power setting and run every valve on 5, which defeats the whole purpose of having them.

Can I change a TRV without draining the system?

You can change the head without draining anything, and that covers a failed capsule or an upgrade to a smart valve. Changing the valve body means the pipework has to be opened, so you either drain the system or use a pipe freezing kit. A freeze kit works but gives you one attempt and a limited window, so it suits a single valve rather than a whole house.

Do you need a plumber to change a radiator valve?

Legally, no. A radiator valve is not a gas appliance, so no registration is required to change one. Practically, it is a real job that involves draining the system, adding inhibitor afterwards and repressurising a sealed system, and a seized radiator tail can turn it into a much longer afternoon. Changing heads is DIY for anyone. Changing bodies is DIY for someone who is comfortable being committed once the water is out.

Do thermostatic radiator valves actually save money?

Yes, and there is a measured figure for it. University of Salford tests in the Energy House, commissioned by BEAMA and published in 2018, found an average energy saving potential of 18 per cent of heating costs from fitting TRVs. That comparison is a house with no TRVs against the same house with them, so if yours already has working valves you have banked that saving and a smart upgrade is competing for what is left.
